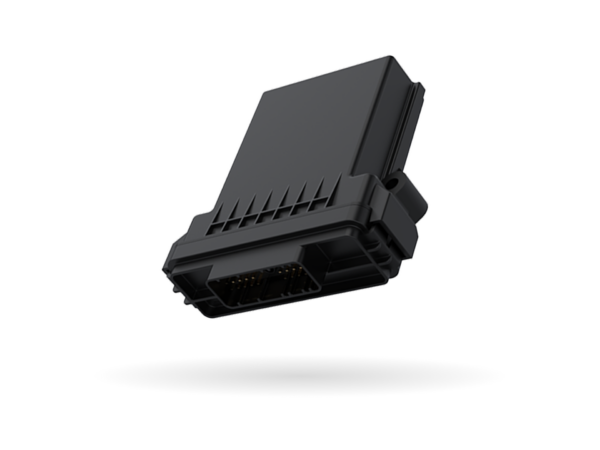

Q Digital Switch Kit

A long-awaited solution to conventional switches – digital control of all the boat’s equipment. The Q Digital Switch has 20 inputs/outputs the Q Display. For safety, and convenience, the Q Digital Switch has built-in SmartFET fuses for each device, which removes the need for a separate fuse panel. The Q Digital Switch is connected to Power and the boat’s NMEA2000 network (all cables included). The outputs are pre-configured as follows: Lights A2: onoff / Navigation lights A3: onoff / Anchor light B2: onoff / Lights 1 B3: onoff Lights 2 C2: PWM Dimmable lights 1 C3: PWM / Dimmable lights 2 D2: onoff Courtesy lights D3: onoff Panel lights Boat E2: Momentary Bilge pump manual E3: Momentary select 1 Anchor UP F2: Momentary select 1 Anchor DOWN F3: Momentary Horn G2: onoff / Fresh water pump G3: onoff / Grey water pump Appliances H2: onoff / Fridge H3: onoff / Engine room fan J2: onoff / Multimedia J3: onoff / Instruments K2: onoff / 12V outlets K3: onoff / USB outlets
